Portable Dual Control PEMF Machine

Product Description

A portable PEMF machine with two independent channels. Run two applicators at once — two body areas or two people — from one wheeled case. 7-inch touchscreen, 1–10 Hz, sessions 1–20 minutes.

Honkay HKS-29D portable dual control PEMF machine - dual channel dual control therapy machine

What It Is

A suitcase-format magnetic field therapy unit with everything built in — no trolley, no installation.

Output 1000–3000 W, split across two independent control systems (System A and System B)
Pulse frequency 1–10 Hz; intensity 10–100%; sessions 1–20 minutes
7-inch touch LCD mounted in the case lid
Case measures 600 × 480 × 550 mm and weighs 35 kg, with telescopic handle and wheels

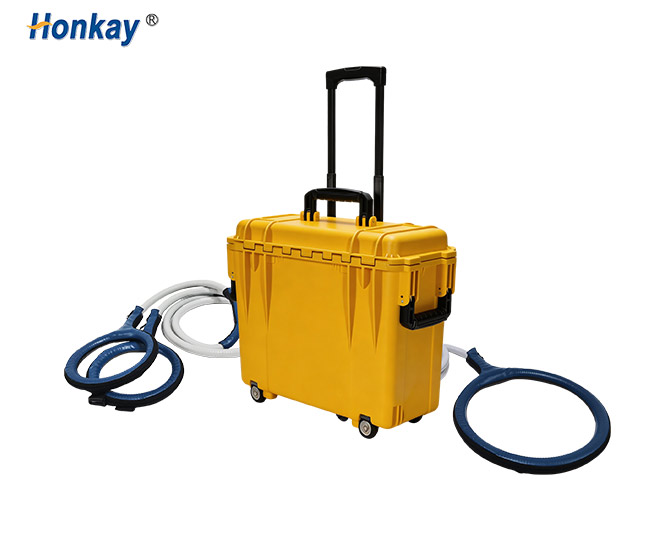

Standard package: Large Loop + Butterfly Loop
Used by physiotherapy clinics, wellness studios, sports recovery rooms, mobile therapists and distributors

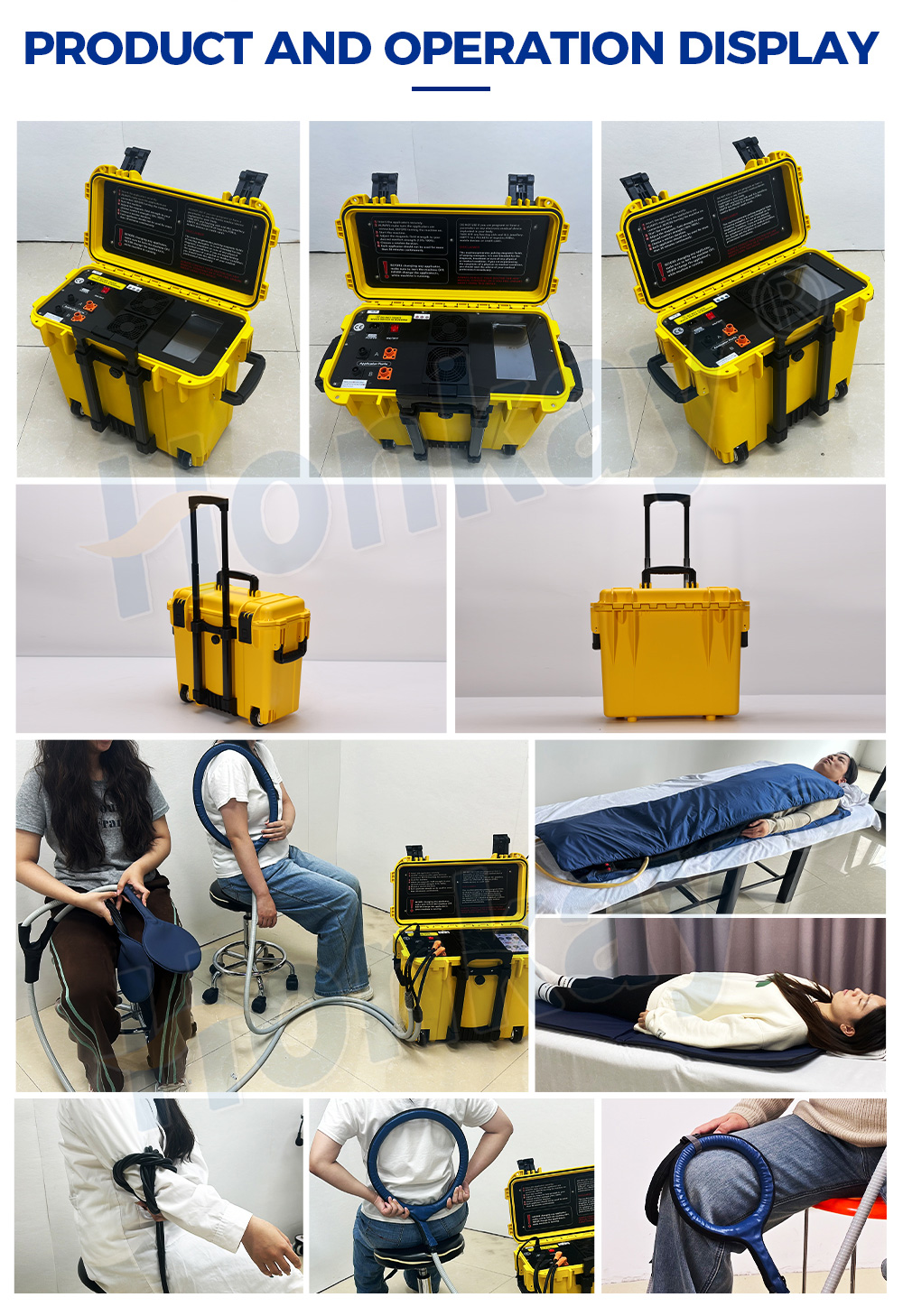

Portable dual control PEMF machine product and operation display

Two Channels: Two Areas or Two People

A single-channel machine treats areas one after another. The HKS-29D runs both at once.

Two areas, one client — Large Loop on the back, Butterfly Loop on a knee or shoulder
Two clients at once — one per channel, with a second applicator set
Mixed formats — a PEMF Mat on one channel while a loop targets a specific area on the other
Shorter appointments, or two clients per hour from a single unit

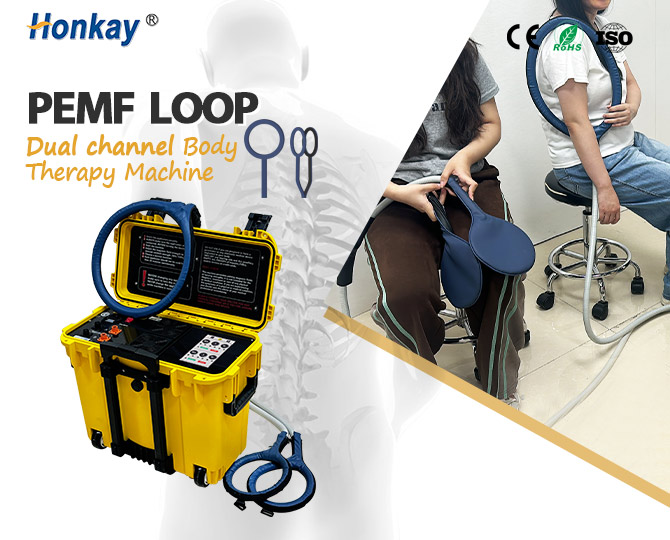

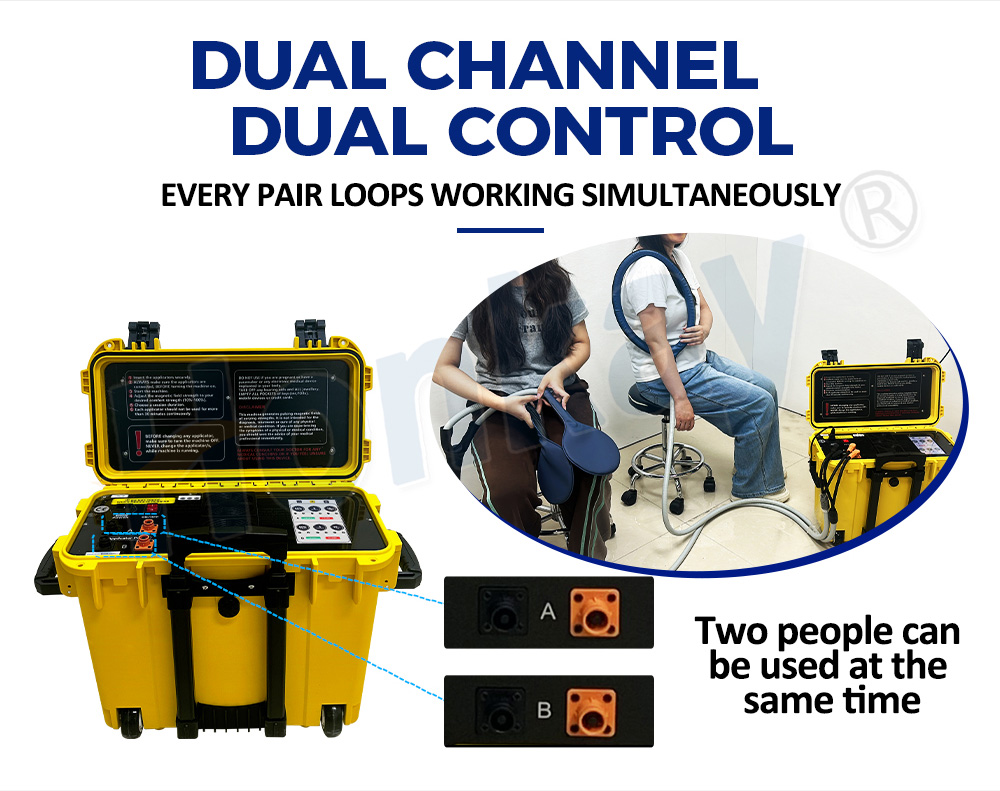

Dual channel dual control PEMF machine - two applicators working at the same time

Touchscreen and Settings

Every parameter is set on the built-in 7-inch touch LCD.

Frequency — 1 Hz to 10 Hz, in 1 Hz steps
Intensity — ten steps, 10% to 100%
Time — 1 to 20 minutes, with automatic stop
Each channel configured independently; both shown on screen
Settings adjustable mid-session, without restarting

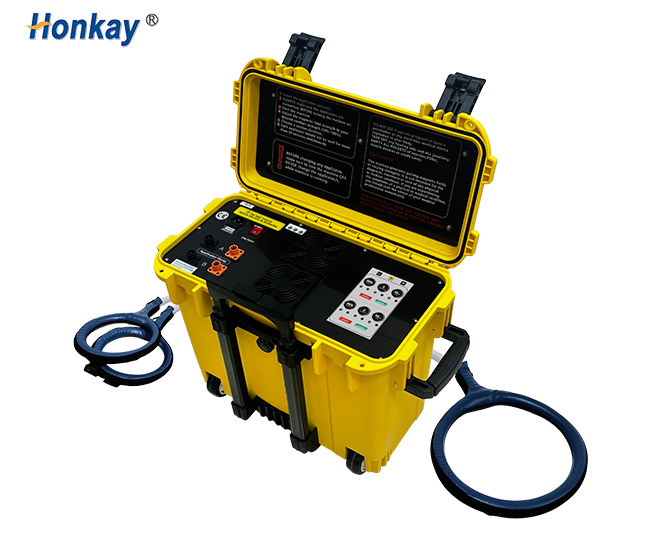

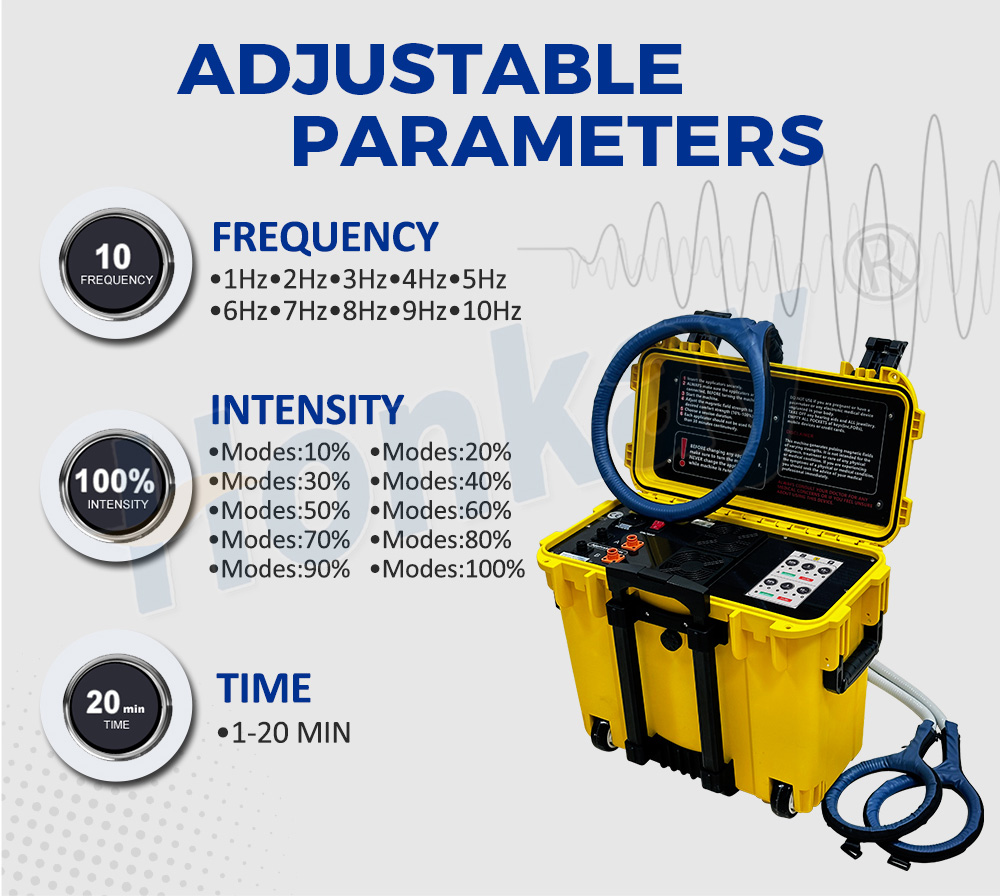

7-inch touch LCD screen with adjustable frequency, intensity and time

Applicators

Two included, seven optional. All use the same quick-release connector and work on either channel.

Accessory	Format	Best suited to
Large Loop (standard)	Large ring	Back, waist, hips, abdomen, thigh
Butterfly Loop (standard)	Twin lobe	Knees, shoulders, elbows, ankles
MagFlex	Flexible coil	Curved areas where a rigid ring will not sit
Long Loop	Extended ring	Spine and larger muscle groups
Double Beats	Twin applicator	Wider coverage in one placement
Chair Cushion	Flat pad	Seated and pelvic-area work
PEMF Mat	Full-length mat	Whole-body, lying-down sessions
Dual Mat	Two-panel mat	Whole-body work split across two zones
Square Mat	Compact pad	Small localised areas

Larger applicators reach deeper; smaller ones concentrate the field on a precise target.

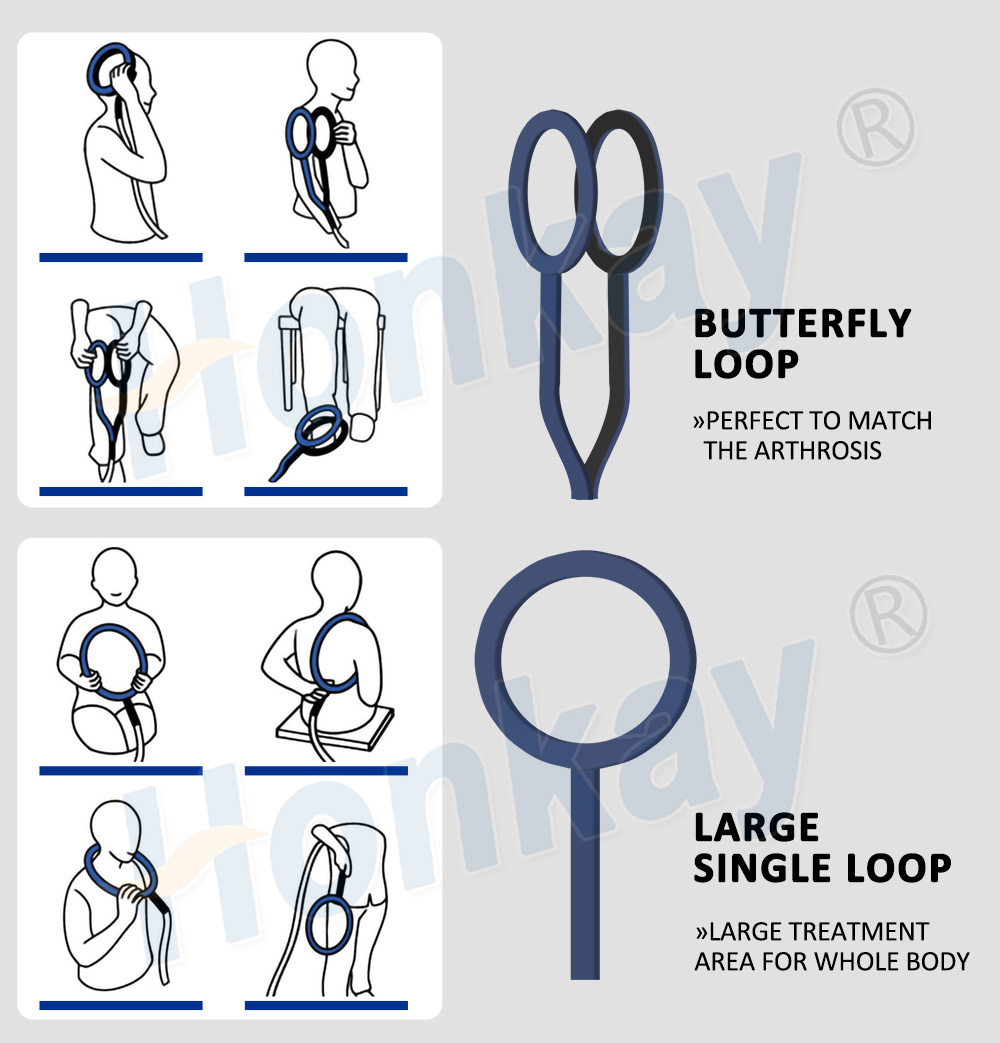

Large single loop and butterfly loop applicators with placement positions

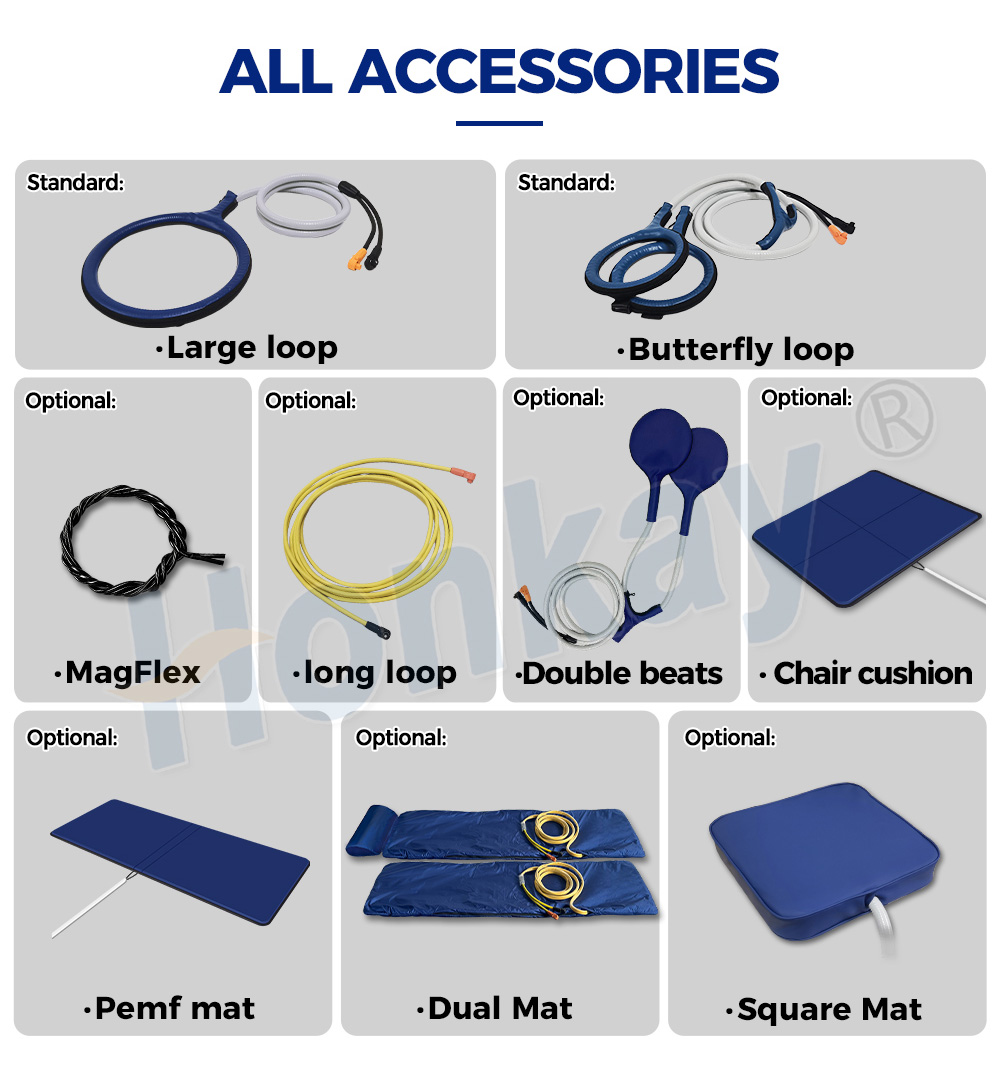

PEMF machine accessories - loops, mats and cushions

Where It Is Used, and a Typical Session

Clinics — move the case between rooms; two beds from one unit
Wellness centres and spas — mat-based sessions, no installation
Sports and fitness — loops on single muscle groups after training
Mobile practitioners — homes, hotels, event venues
Home wellness — move between rooms, store in a cupboard

A standard appointment runs in five steps:

Position the client and applicators.
Power on and check which applicator is on which channel.
Set frequency, intensity and time, starting low.
Start and monitor.
Automatic stop — wipe the loops, coil the cables, close the case.

Pack-down takes about two minutes.

Protocols should be set by, or in consultation with, a qualified practitioner. The machine is a professional wellness tool, not a substitute for medical diagnosis.

Portable PEMF machine application scenarios - clinic, physical therapy centre, home use

PEMF applications for neck, back, shoulder, elbow, knee and ankle areas

Common indications of magneto therapy including bone repair and joint pain relief

Magneto therapy benefits - bone regrowth, pain management, sleep improvement

Technology, Specifications and OEM Support

An initial magnetic pulse is followed by a 4.5 kHz damping oscillation that decays across the pulse window. Honkay quotes 10–15 cm of tissue penetration; actual depth depends on output intensity and applicator diameter.

Model	HKS-29D
Output power	1000–3000 W
Control system	System A, System B (two independent channels)
Pulse frequency	1–10 Hz
Pulse technology	Dual-frequency magnetic field pulses, 4.5 kHz damping oscillation
Screen	7-inch touch LCD
Standard applicators	Large Loop, Butterfly Loop
Packaging dimensions	600 mm × 480 mm × 550 mm
Weight	35 kg
Certification markings	CE, RoHS, ISO, TÜV SÜD (as shown on product materials)

Honkay manufactures this platform, so distributors can specify the outer box logo, ring colour, housing appearance, handle configuration, internal structure and screen branding. OEM projects are quoted individually — custom artwork and tooling add several weeks.

Send your target configuration — channels in use, accessory list, session volume and destination market — for a quotation. Related systems: PEMF and physiotherapy range.

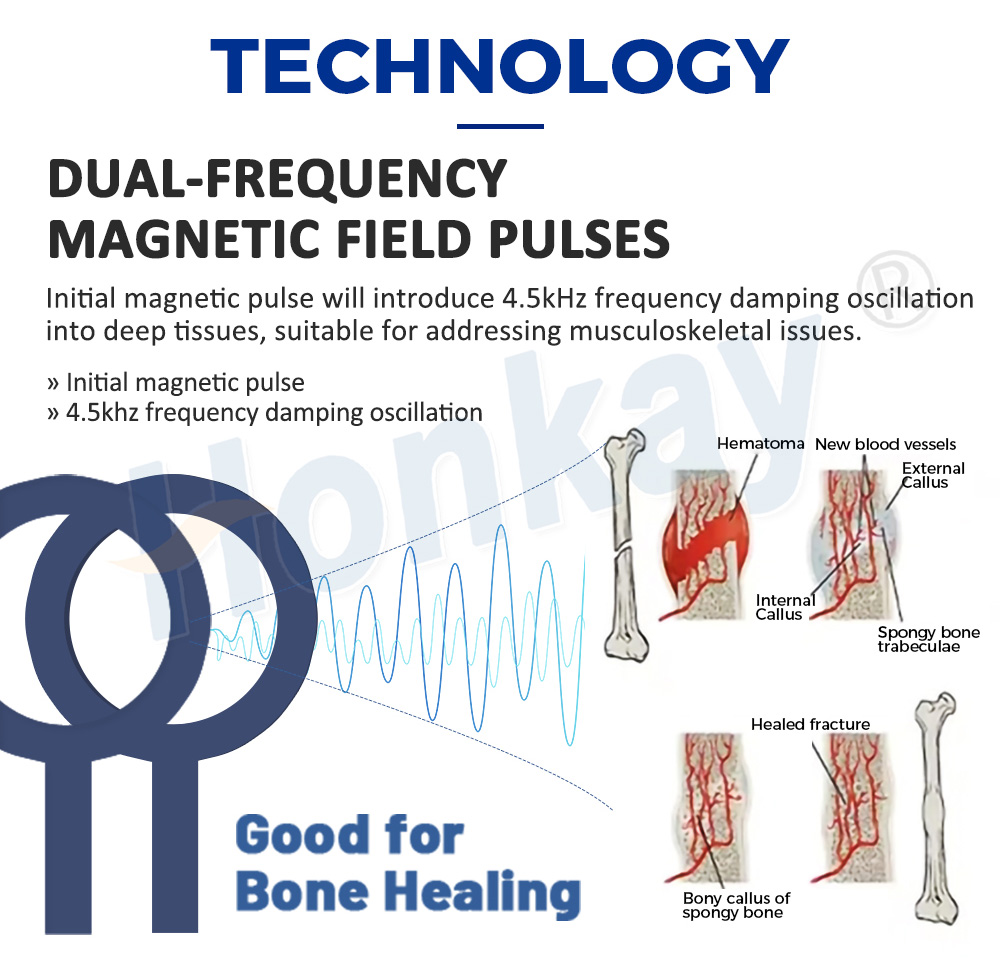

Dual-frequency magnetic field pulses - 4.5 kHz damping oscillation for bone healing

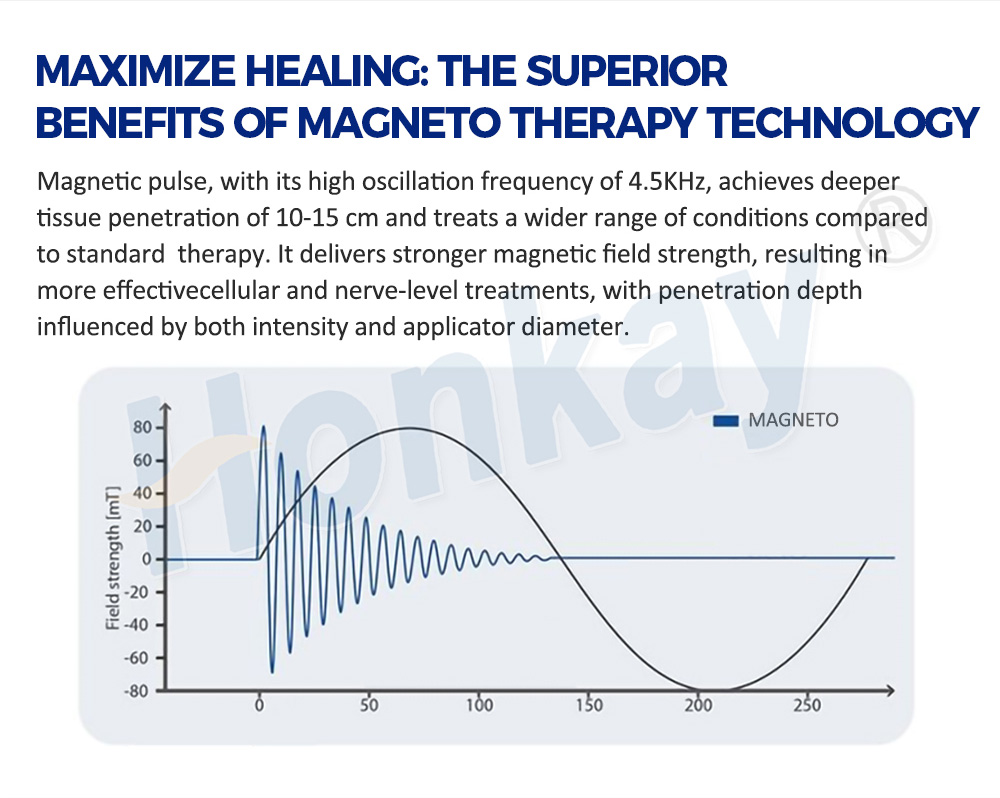

Magneto therapy field strength curve and tissue penetration depth

PEMF machine OEM and private label customisation options

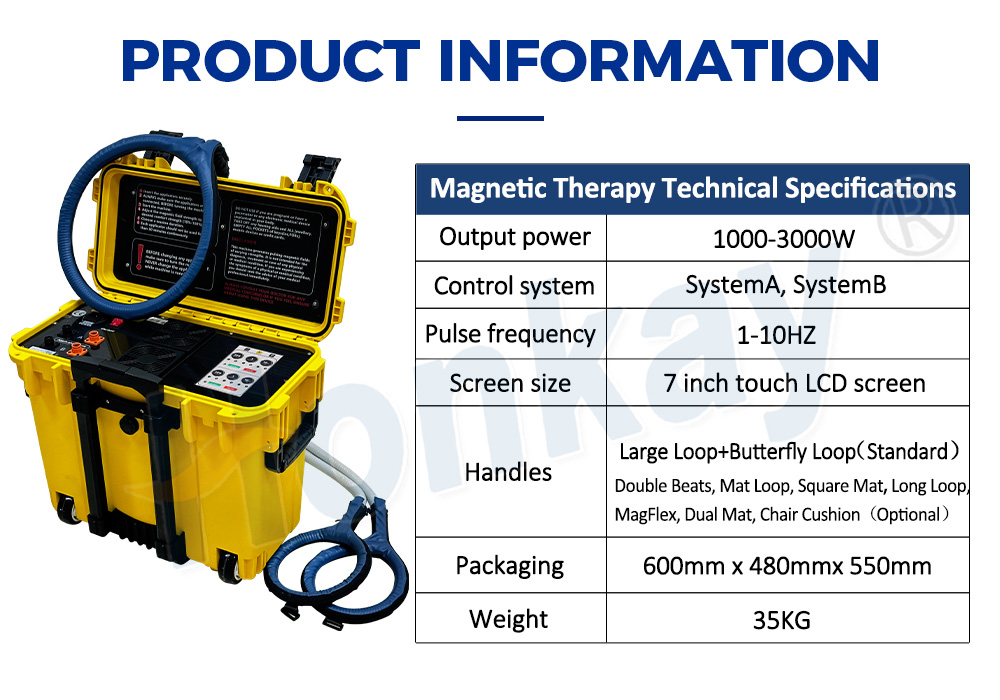

HKS-29D technical specifications and product information
